There are four step attenuation totally.
Built-in amplifier compensates insertion loss.
Use LCD to display the satellite signal intensity
It automatically recognizes the LNBF frequency and works with any C band, Ku band,
or Ka band satellite. No need to input transponder frequency, symbol rate, or
polarity. This meter is truly & play
Descriptions
With electronic buzzer
Sensitive meter for inline use; pocket size and light weight
Powered by the receiver, nice tool for campers.
Specifications:
Color: blue
Material: plastic
Size: 130*65*27mm
Frequency Range: 950-2150MHz
Input level Range: -40--10dBm
Impedance: 75
Gain: 10 dB
Power Supply: 13-18V DC
Operating Temperature: 0-40°

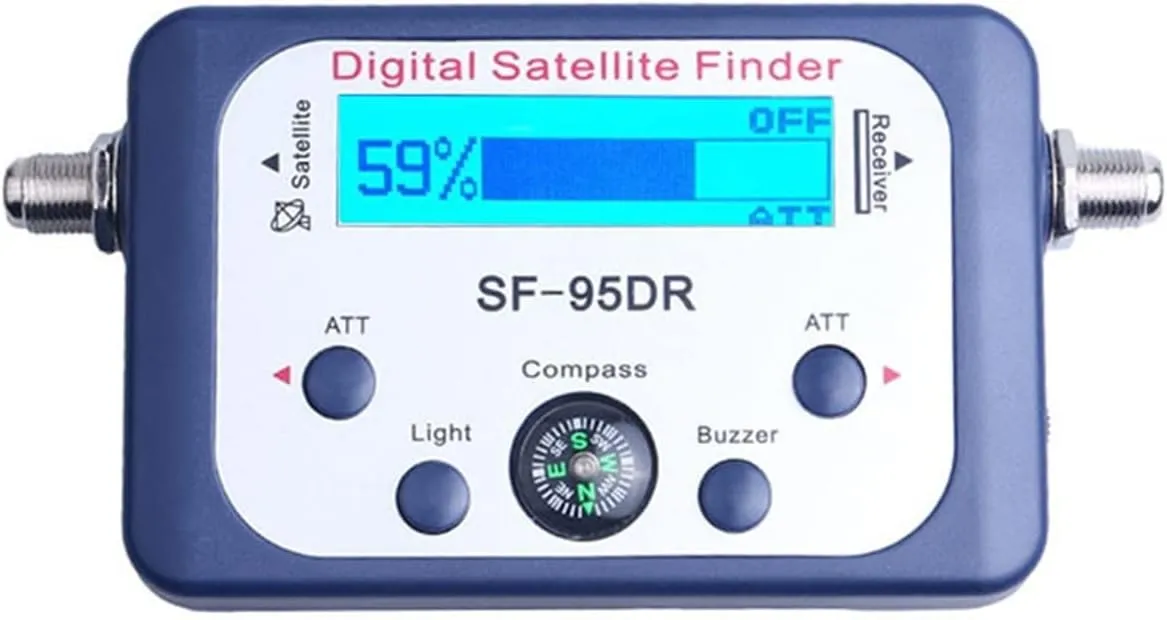

Model: SF-95DR
Notes:
Please allow 0-2mm error due to manual measurement, thanks for understanding.
Due to the difference between different monitors, the picture may have some different to real color of the item. Please understand, thank you
Package included:
1 x Digital Satellite Finder
