- Dual Ceramic Ball Bearing System
- 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 10 Blade Turbine Wheel with High Horsepower
- Cover Integrated with the Speed Sensor Port
- Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
- Larger Turbine Wheel for Higher flow

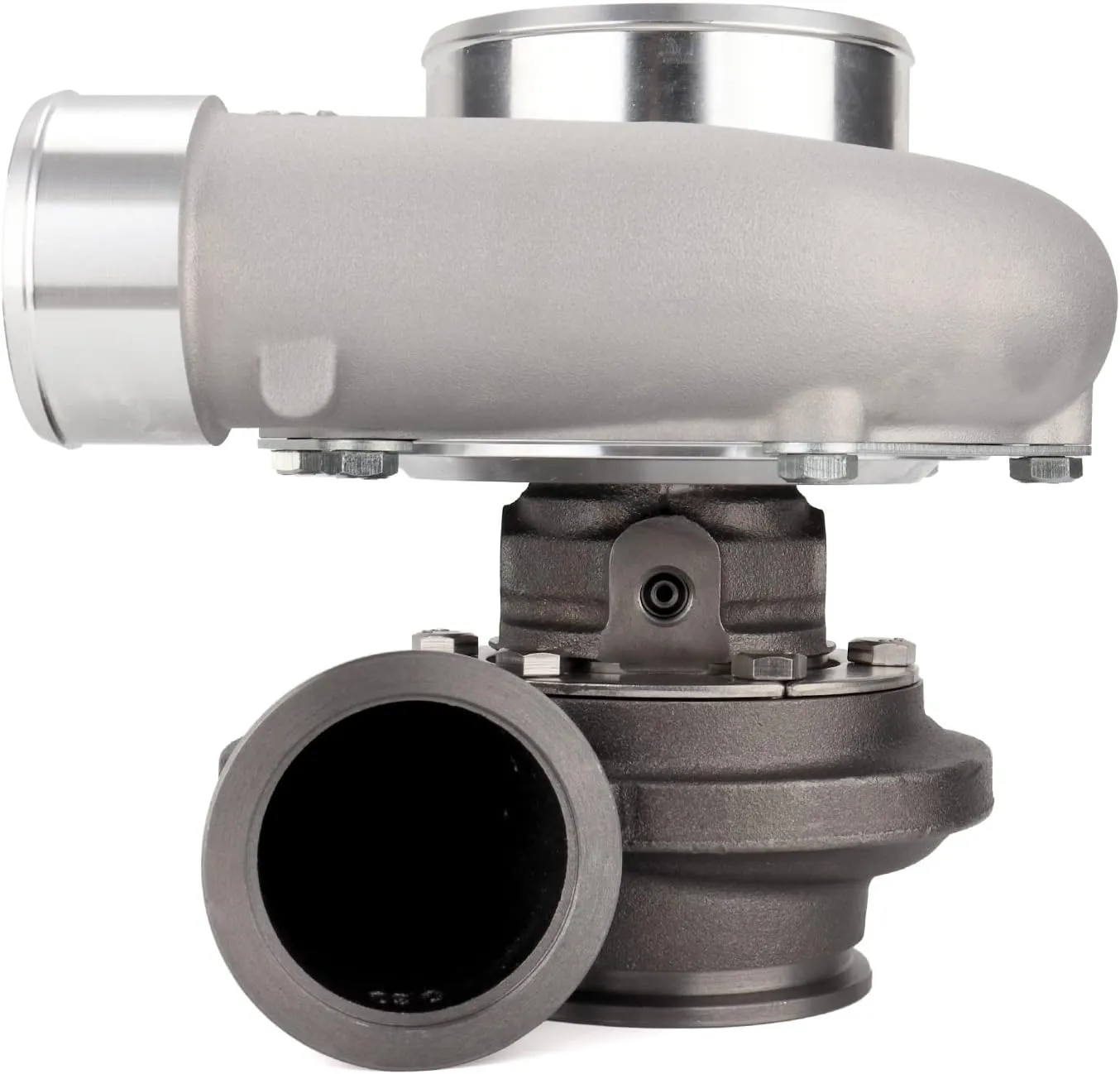

- PSR3584 GEN3 TURBO comes with Larger Turbine Wheel for higher flow.
-Application:
Fit Vehicle: Universal turbo for performance use, racing car, etc.
Fit engine displacement 2.0-5.5L.
Making 550-1000HP
-Item Details:
Dual Ceramic ball bearing
Standard Compressor Housing: 4'' inlet, 2.5'' outlet, 0.72 A/R, Anti-surge
Billet Compressor Wheel: 67/84mm, 10 0 Blade
Larger Turbine Wheel: 74/66mm
Turbine Housing: Dual Vband 0.83A/R
Turbine housing Inlet flange&clamp fit: 2.5'' OD tubing, slip on & weld
Turbine housing Outlet flange&clamp fit: 3'' OD tubing, slip on & weld
Oil Feed: -4 AN connected to the Oil Restrictor
Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5
We highly recommend running water cooling for better durability.
-Special Note:
1. Professional installation is highly recommended! Please ask all questions before purchasing!
2. Item(s) might be sent from our overseas warehouse via UPS, DHL, etc. at our discretion, you are responsible for the import duty (If Any) upon delivery.
