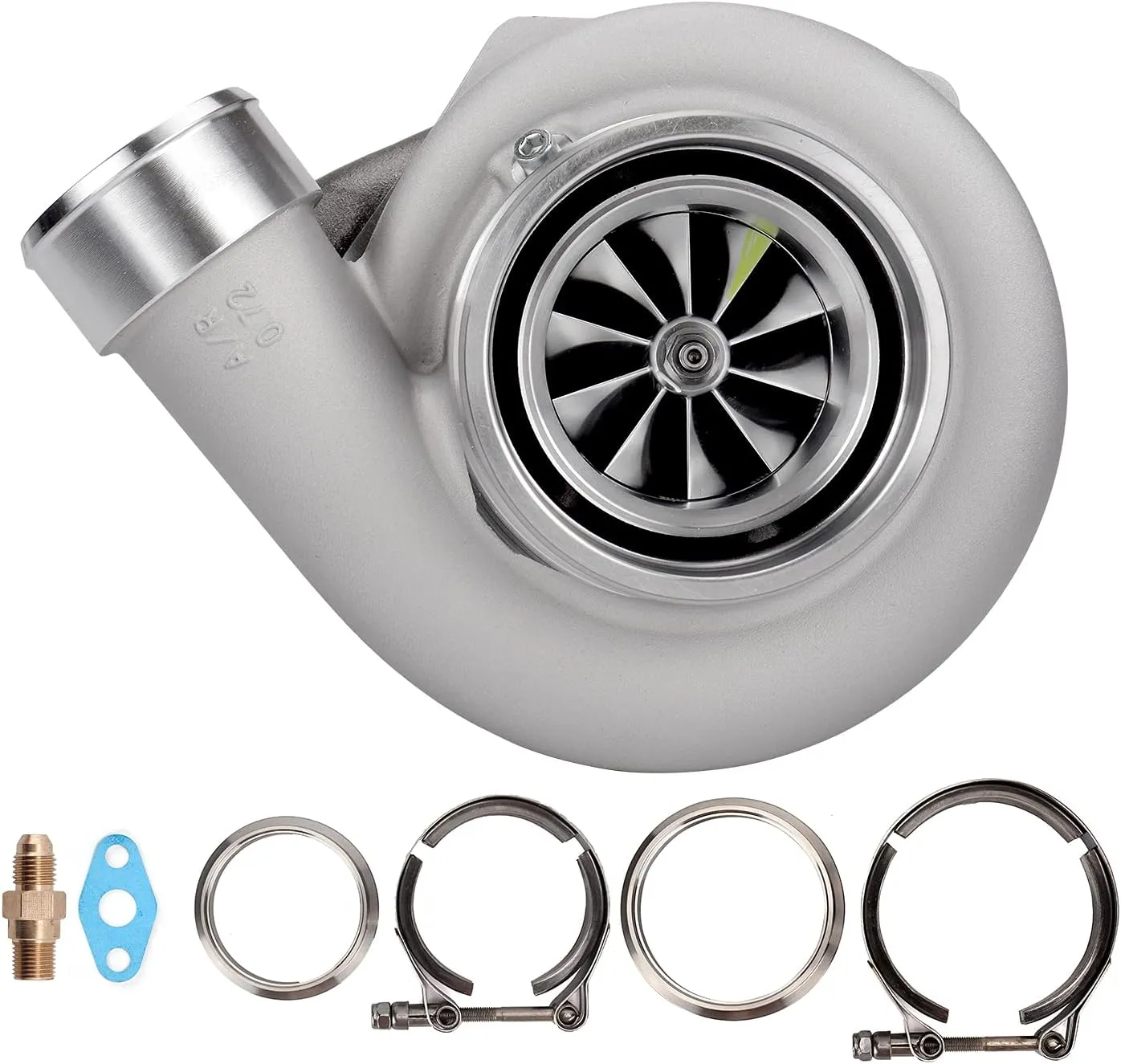

- GTX3582R GEN2, Dual Ceramic Ball Bearing System, Vband inlet Vband outlet, 0.83A/R turbine housing
- Max Air Flow rate: ~85 lb/min, rated @ 880 FWHP,Horsepower rate: 450-900, Engine displacement range: 2.0L-4.5L
- 0.72A/R Gen2 Cover Integrated with the Speed Sensor Port
- 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology, Inconel 713c Gen2 9 Blade Turbine Wheel
- 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet etc. turbine housings in option
GTX3582R GEN2, Dual Ceramic Ball Bearing System?Vband inlet Vband outlet,0.83A/R turbine housing
Application:
Fit engine displacement 2.0L-4.5L.
Description
Compressor Wheel: 66*82mm
Turbine Wheel: 68*62mm
Compressor Inlet: 4.0 Hose
Compressor Outlet: 2.5 Hose
Turbine Inlet: T3
Turbine Outlet: 3? V-Band (3.55?OD)
Turbine Housing A/R?1.06A/R
Oil Feed: -4 AN connect to the Oil Restrictor
Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
Special Note:
1. Professional install is highly recommended! Please ask all questions prior to purchase!
2. Pulsar Turbo Systems warrants the product against defects in materials and workmanship for a period of 1-year from the date of original purchase.
3.Item(s) might be sent from our overseas warehouse, you are responsible for the import duty (If Any) upon delivery.
4. More options, please check out Pulsar Turbo Systems(PSR) website.
