Product Description

PanaVise is a major manufacture of Vises and Work Holding Tools. PanaVise's Tilt, Turn & Rotate technology has been applied to the product line, allowing for maximum efficiency and many different uses. Introducing the Panavise 303 STANDARD HEAD, our best selling general purpose Vise Head. Perfect for hobbies, electronics and small home repairs! Select the 300, 305 or 380 Base and create your own versatile vise. Jaws are 2.5-inch (63.5mm) wide, 0.5 (12.6mm) tall and open to 2.25 (57.1mm). Nylon jaws offer excellent electrical insulation and gentle holding power, continuous heat tolerance up to 200 F (93 C), intermittent heat to 300 F (149 C). Vice accessories available for this Head. Throat depth: 1.375-Inch (34.9mm) Height: 4.25 (108.0mm), Weight: 1.5 lbs. (0.7kg).

From the Manufacturer

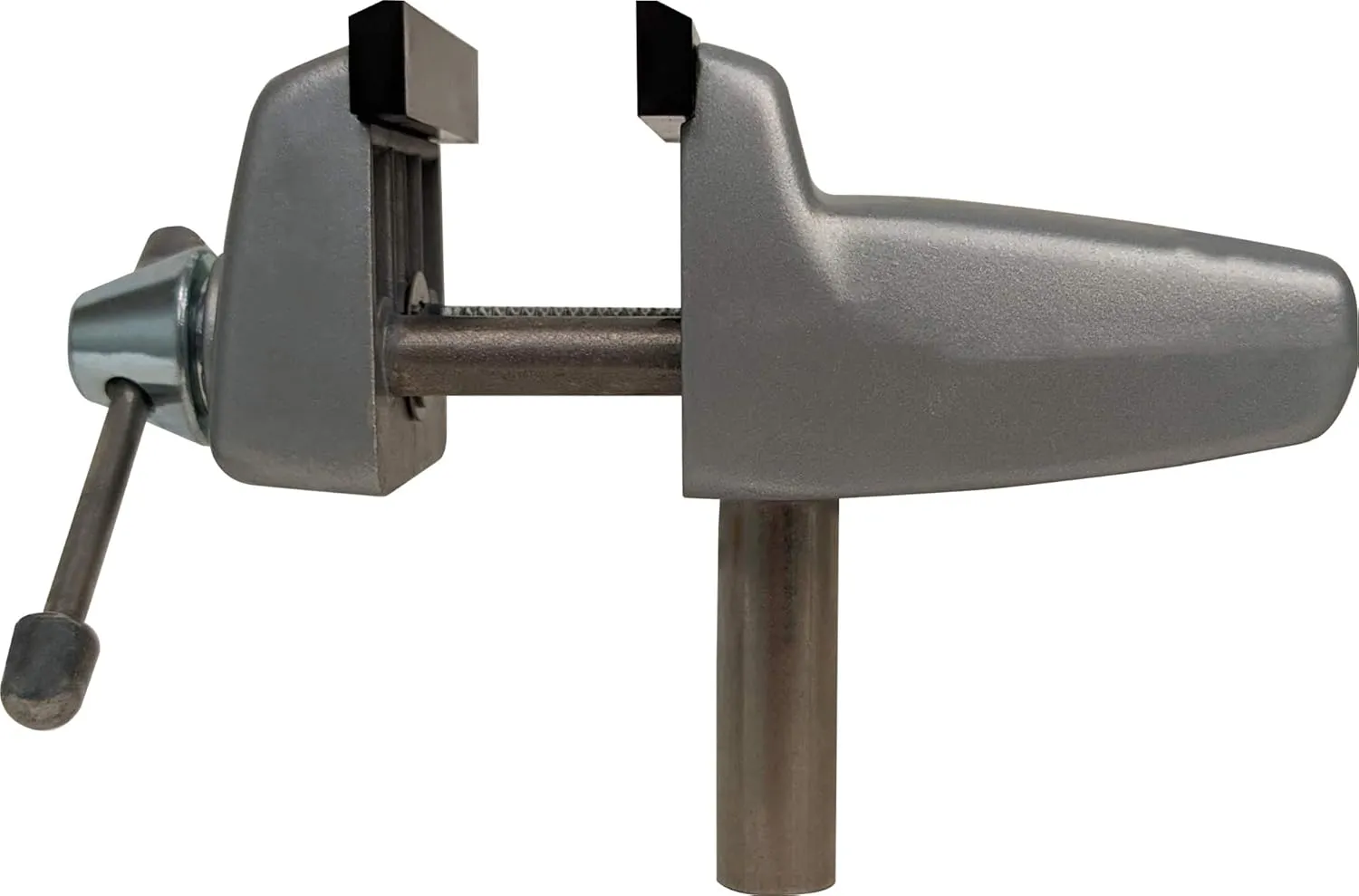

The PanaVise 303 standard vise head is a versatile and rugged general work-holding tool head suitable for hobbies, electronics and small home repairs. The 303 standard vise head is compatible with all PanaVise 300 series work-holding tool bases. It ships with smooth, insulated jaw pads that that provide gentle holding power, and are heat-tolerant and insulated from electrical current.

A General Use Head Compatible with All 300 Series Bases

The PanaVise 303 standard head is a work-holding tool accessory designed for general versatility. The vise head is 4-1/4" (108 mm) tall and weighs 1.5 lb. (0.7 kg), with a shaft length of 2-1/8" (54 mm). Its shaft diameter is 5/8" (15.9 mm), which makes it compatible with the full product line of PanaVise 300 series bases. The vise is opened and closed with a traditional outer jaw screw mechanism with a sliding handle. The jaws of the PanaVise 303 standard head open up to 2-1/4" (57.1 mm), with the inner edges of the jaws covered by nylon jaw pads (included). The jaw pads measure 2-1/2" (63.5 mm) (w) x 1/2" (12.6 mm) (h). They are heat resistant, with continuous tolerance to 200 degrees F (93 degrees C) and intermittent tolerance to 300 degrees F (149 degrees C), can be replaced in the event of wear, and provide both gentle holding power and electrical insulation. A variety of additional jaw pads with materials and features designed for more specific uses are available for additional purchase.

Key Features

• A versatile general use vise head suited to hobbies, electronic and home repair applications
• Compatible with PanaVise 300 series bases
• Traditional outer jaw screw mechanism with sliding handle
• Removable nylon jaws pads are heat resistant and provide both gentle holding power and electrical insulation
• Additional jaw pad replacements are available

Specifications

• Height: 4-1/4" (108 mm)
• Weight: 1.5 lb. (0.7 kg)
• Throat depth: 1-3/8" (34.9 mm)
• Shaft diameter accepted: 5/8" (15.9 mm)
• Shaft length: 2-1/8" (54 mm)
• Jaws
  • Material: Nylon
  • Opening: Up to 2-1/4" (57.1 mm) maximum
  • Dimensions: 2-1/2" (63.5 mm) (w) x 1/2" (12.6 mm) (h)
  • Heat tolerance: Continuous up to 200 degrees F (93 degrees C); Intermittent up to 300 degrees F (149 degrees C)

What's in the Box?

• PanaVise 303 standard head
• User's manual and warranty information

Limited Lifetime Warranty

All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance.

About PanaVise

Founded in 1957 by tool and die maker Otto Colbert and currently headquartered in Reno, Nevada, PanaVise is a leader in work-holding products. Over the years, a natural outgrowth of this expertise has been continued development of other items which hold things securely and offer a wide range of motion. Important areas in which this has been applied include, Electronics, CCTV Camera Mounts, and Audio/Video Mounts, earning PanaVise the nickname the "the hold it anywhere you want it company."

• Is Discontinued By Manufacturer ‏ : ‎ No
• Product Dimensions ‏ : ‎ 6.5 x 4.7 x 4.6 inches; 1 Pounds
• Date First Available ‏ : ‎ November 19, 2003
• Manufacturer ‏ : ‎ Panavise
