The ProPlus 4.0 connects to your smartphone through the free DiverLog App, available in the app store. Divers can adjust the dual Nitrox mixes, switch the Dual Algorithm™, gas mixes, user display, alarms, all on the go pre- and post-dive.
Pre-Dive: plan your dive with alerts for time and depth, select your gas mixes from the comfort of your mobile device, and more!
Post-Dive: download your dive instantly to your mobile device, view your most recent dive profile and information, add photos and videos, and use the search query to filter by location, dive type and depth.

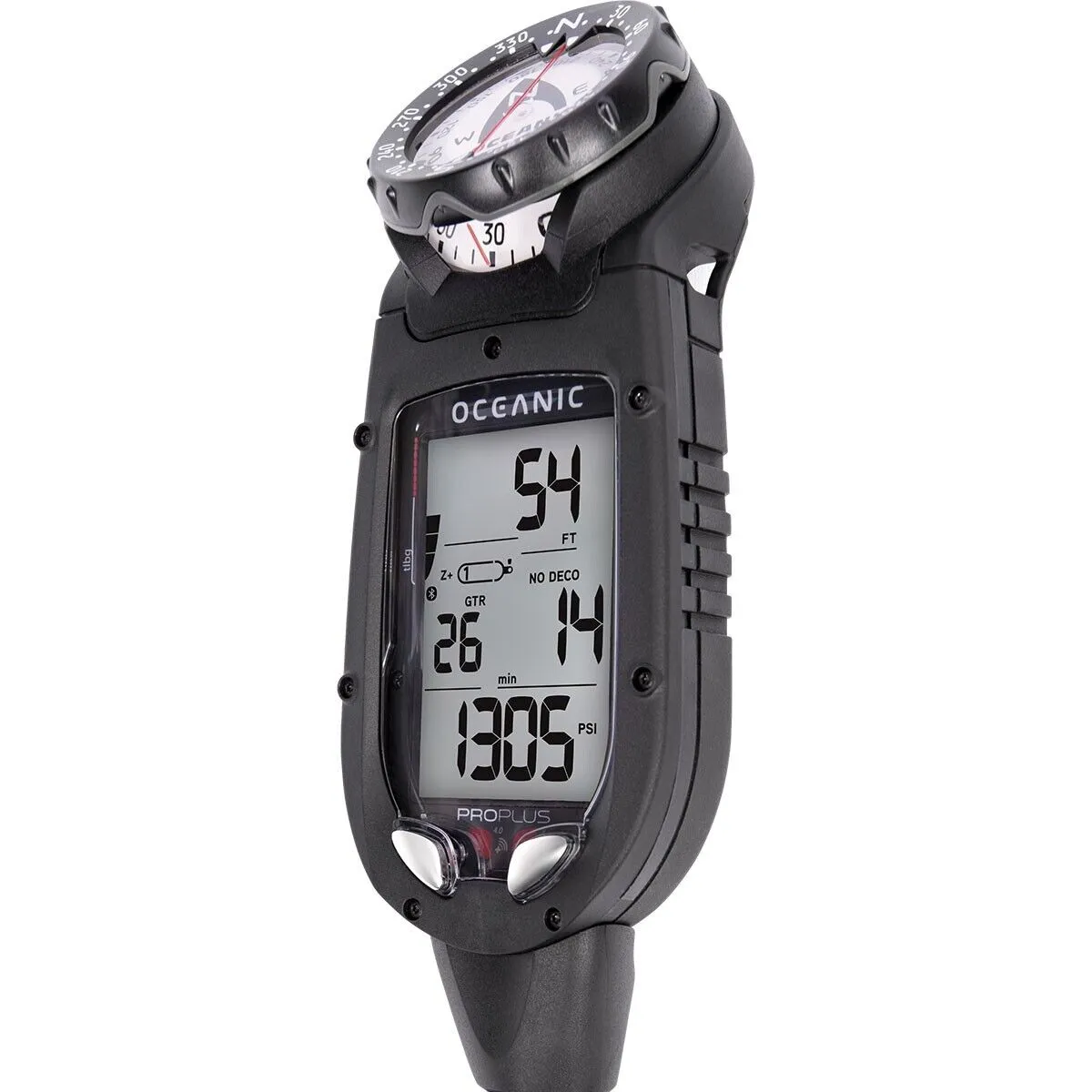

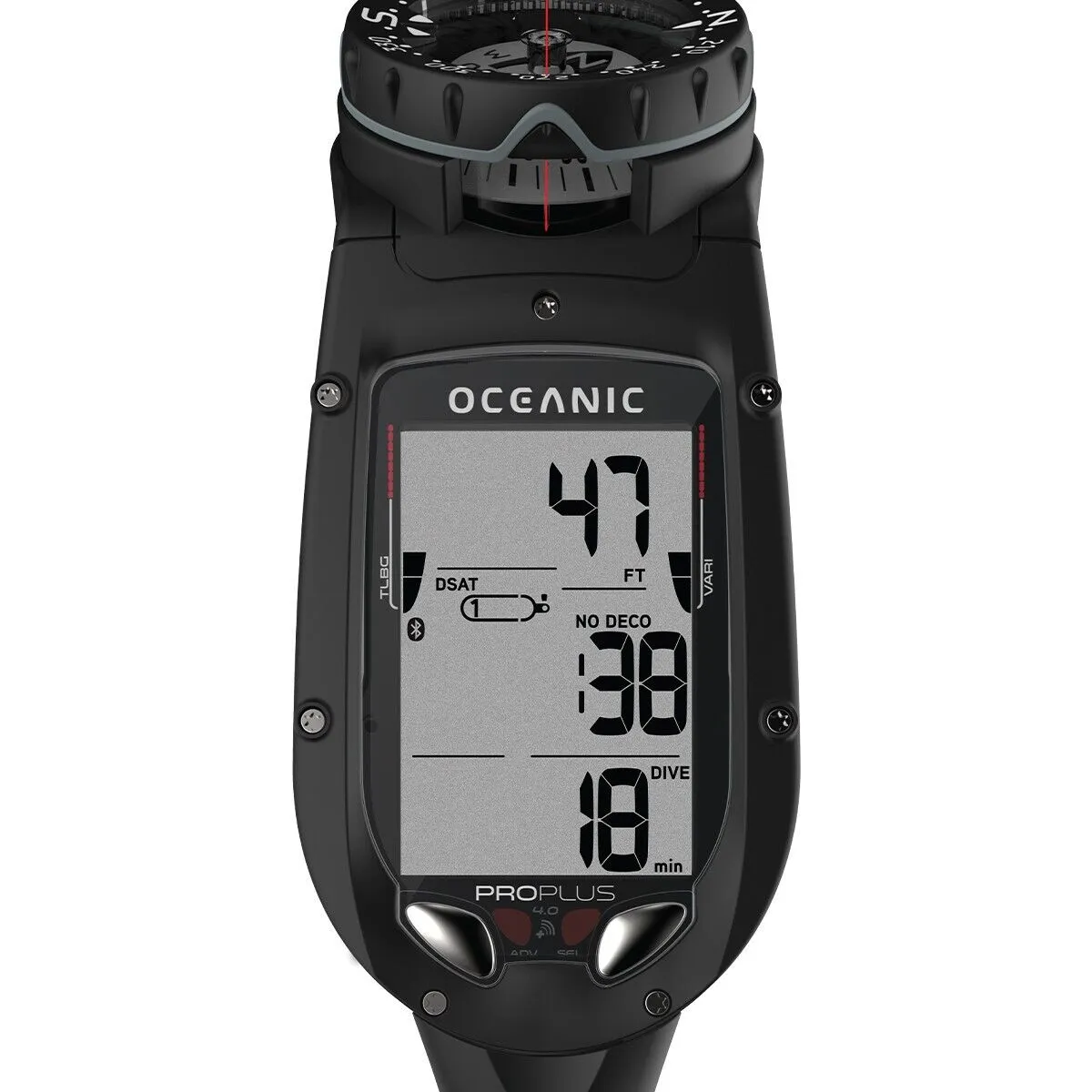

XL DISPLAY
The ProPlus 4.0 features an XL display area and wide font size that is crisp and easy to read, and 22% larger digits, making it among the clearest consoles on the market.
CHOOSE THE RIGHT ALGORITHM FOR YOUR DIVE
Pelagic Z offers a conservative approach to recreational diving or maximized bottom time for deep and decompression dives, maximizing dive times at depth without excessive penalties. Pelagic DSAT safely maximizes dive times for repetitive, multi-level recreational diving.
Dive in Sync with Any Buddy, Anywhere.
Dual Algorithm allows you to choose the algorithm and its conservatism. This means the Pro Plus 4 can closely match your dive buddy’s algorithm, eliminating the need for either of you to cut your dive short, even if you’re diving different computers.
Lens Cover Instructions
Lens protector supplied with the Proplus 4.0 computer includes a clear covering on the back that must be removed before it is installed on the module’s lens. It also comes with a brown covering on the opposite side, that too must be removed prior to use.
Specs
FEATURES & FUNCTIONS | ProPlus 4.0 |
|---|
| Modes of Operation | AIR, NITROX, GAUGE |

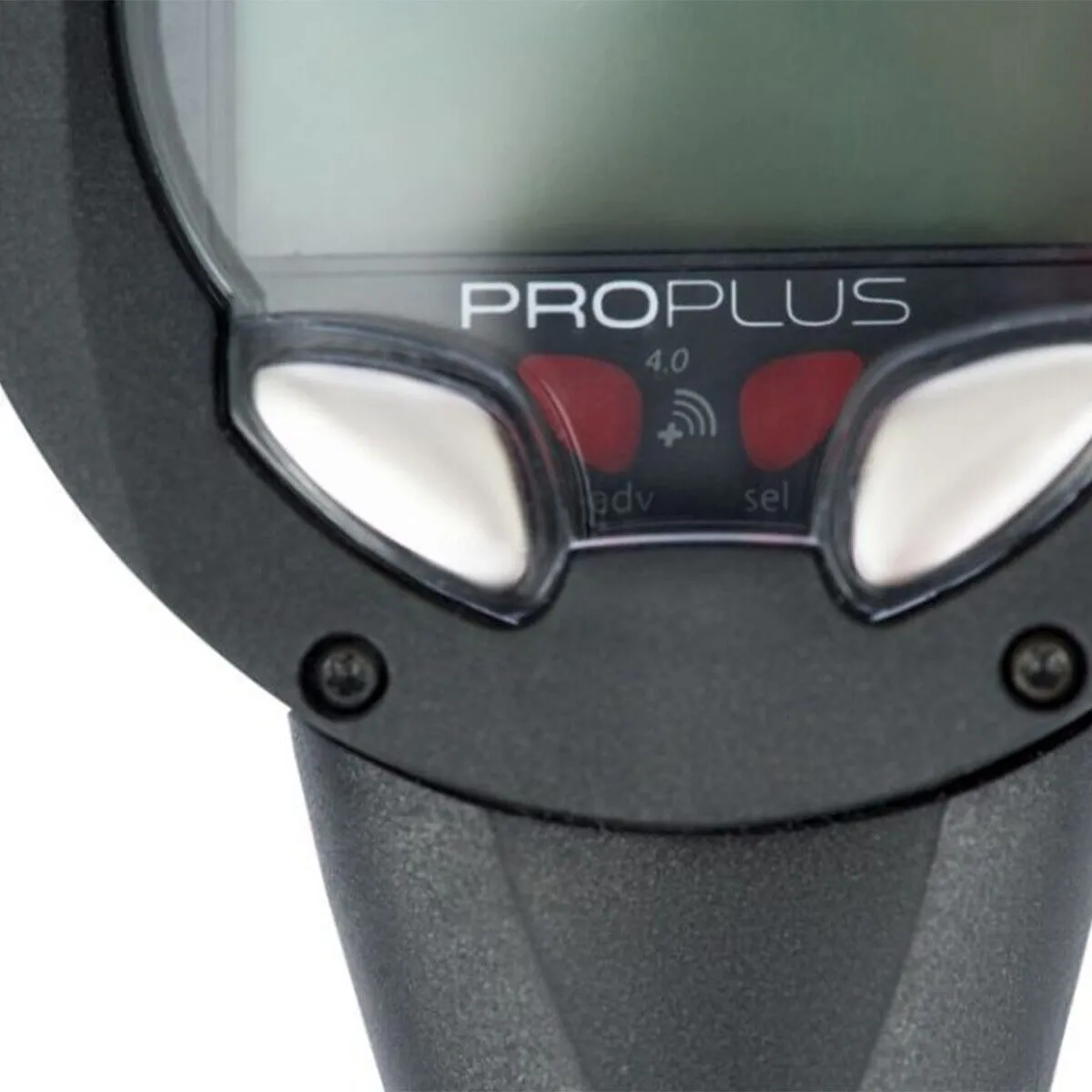

| Push Buttons | 2 |
| Mounting Options | CONSOLE |
| Activation | Water or Push Button |
| Algorithm Basis | Modified Haldanean / DSAT (Diving Science and Technology) Database / Z
|
| Altitude Algorithm Basis | NOAA |
| O2 Limit Basis | NOAA |
| Tissue Compartments | 12 (5 to 480 minutes) |
| Automatic Altitude Adjustment | 2,000 – 14,000 ft / 610-4200 m |
| Decompression Capability | 10 – 60 ft (3-18 m) |
| Automatic Safety Stop Prompt | YES |
| Cylinder Pressure and Air Time Remaining | YES |
| Audible Alarm | YES |
| Alarm Acknowledgment (U/W Deactivation) | YES |
| Ascent Rate Range | 3-9 m/min – 6-18 m/min |
| Ascent Rate Maximum | 30 fpm (<60 ft) – 9 m/min (<18m)
60 fpm (>60 ft) – 18 m/min (>18m)
|
| OceanGlo Backlight (Push Button) | YES |
| SmartGlo Backlight (Sensor) | YES |

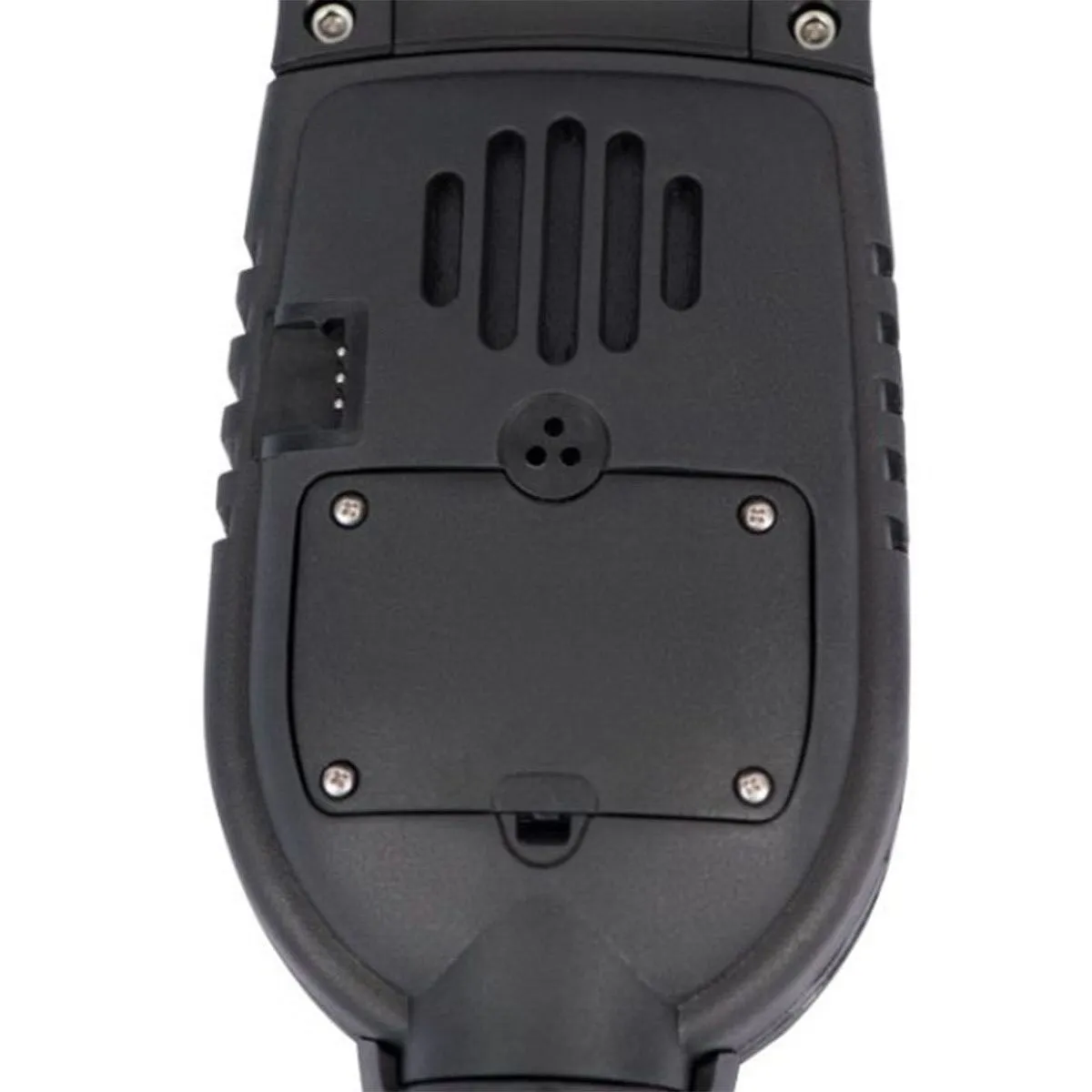

| Diver Replaceable Batteries | YES |
| Battery Type | CR2 |
| Battery Life* | 300 HOURS |
| Battery Hot Swap (retains calculations) | YES |
| Low Battery Indicator (Graphic) | YES |
| Calendar / Clock | YES |
| Operating Depth (Max) | 330 ft – 100 m
|
| Operating Depth (Gauge Mode) | 330 ft – 100 m
|
| 12/24 Hour Time to Fly Countdown | YES |
| Calculated Desaturation Countdown | YES |
| Dive Mode Displays | USER CHOICE OF 1 MAIN AND 3 ALTERNATES |
| High O2 Alarm / Warning | 300 SOTU / DOTU |
| High PO2 Alarm / Warning | 1.6 DEFAULT OR USER SETTING |
| On-Unit Log Capacity | 24 DIVES |
| OceanLog PC Download | OPTIONAL |
| OceanLog PC Settings Upload | OPTIONAL |
| OceanLog Download Memory Capacity | UP TO 150 DIVES** |
| Pre-Dive Planning Sequence | PUSH BUTTON 30-190 ft / 9-57 m |
| On-Unit Simulator and Dive Planner | NO |
| Temperature Display | YES |
| User Reset / Power Off | YES |
| Air Time Remaining Bar Graph | YES |
| Nitrogen Tissue Loading Bar Graph | YES |
| Oxygen Loading Bar Graph | YES |
| Variable Ascent Rate Bar Graph | YES |
| No Decompression Time Remaining Display | YES |
| Air Time Remaining Display | YES |
| O2 Time Remaining Display | YES |
| Set Mode with Rapid Advance | YES |
| Set “Turn Around” Pressure Alarm | YES |
| Set “Ending” Pressure Alarm | YES |
| Set FO2 Value (%) | AIR, 21-100% |
| Set Audible Alarm On/Off | YES |
| Set Max Depth Alarm | YES |
| Set Elapsed Dive Time Alarm | YES |
| Set Maximum Nitrogen Tissue Loading Bar Graph Alarm | YES |
| Set Dive Time Remaining Alarm | YES |
| Set Units Of Measurement | YES |
| Set Time Format (12/24 Hour) | YES |
| Set Time of Day | YES |
| Set Date | YES |
| Set Maximum PO2 Alarm | YES |
| Set FO2 50% Default | YES |
| Set Backlight Duration | YES |
| Set Sampling Rate (OceanLog Download) | 2/15/30/60 SECONDS
2/5/10 FT |
| Set Digital Gauge Mode On/Off | YES |
| Set Water Activation On/Off | YES |
| Warranty | 2 YEAR |
